Home EV Charger Installation: Do You Need a Switchboard Upgrade?

Why Upgrading Your Switchboard is Crucial for Safe Home EV Charger Installation

Absolutely! In many homes throughout Melbourne, the installation of an EV charger often necessitates a switchboard upgrade. A significant number of older switchboards do not possess the necessary load capacity, RCD protection, or available circuit space required for the secure and compliant installation of an electric vehicle charger. Engaging a licensed electrician to conduct a comprehensive inspection and facilitate the upgrade of your switchboard is essential. This ensures that your home can safely accommodate the charging of your EV without any associated risks, safeguarding both your property and your investment.

As the enthusiasm for electric vehicles continues to rise in Melbourne, an increasing number of homeowners are making the decision to install EV chargers in their garages or driveways. However, many individuals do not realize that proper preparation of your home’s electrical system is a fundamental requirement, starting with a thorough evaluation of your switchboard. Ensuring that your electrical infrastructure can adequately support the demands of an EV charger is paramount, not just for safety, but also for the efficiency of your charging system.

At Direct Point Electrical, we have successfully completed numerous EV charger installations across Berwick, Narre Warren, and Cranbourne in Melbourne’s outer east. In nearly every instance, the switchboard is the first component we evaluate to ensure it meets all necessary standards for safe and efficient charging. Our expertise guarantees that each installation complies with local regulations while delivering optimal performance tailored to your specific needs.

Understanding the Unique Requirements of EV Chargers vs. Standard Power Points

EV chargers are fundamentally different from standard household appliances, such as your toaster or washing machine. Most residential charging units, especially the 7kW and 22kW models, require:

• A dedicated circuit designed to effectively manage the electrical load
• RCD protection, as mandated by AS/NZS 3000 standards, to ensure user safety
• Ample amp capacity, generally ranging from 32A to 50A
• Effective load balancing to mitigate the risk of overloading other circuits within your home

Therefore, connecting an EV charger to an outdated fuse box or an overloaded switchboard is not only impractical; it poses considerable safety hazards and fails to comply with current regulations. For detailed guidance on the specific requirements for EV chargers in residential settings,

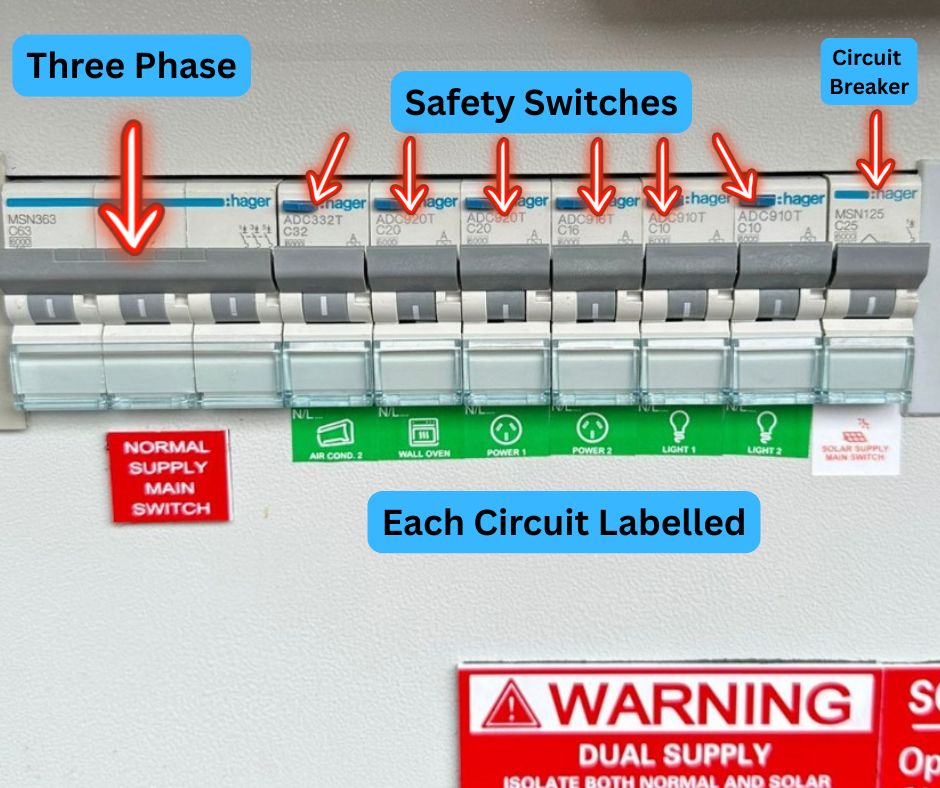

Identifying Signs That Your Switchboard Requires an Upgrade

If your home was built more than two decades ago, it is highly likely that your switchboard lacks the capacity necessary to support an EV charger. During our assessments, we look for several critical indicators:

• Old ceramic fuses or asbestos backing, both of which are outdated and pose significant hazards
• Absence of RCD or safety switch protection, which is vital for preventing electrical accidents
• Limited circuit space that does not allow for the installation of a new dedicated circuit
• Signs of burn marks, buzzing noises, or frequent tripping when using appliances
• Lack of a 3-phase supply if you plan to install a faster 22kW charger

Any of these warning signs indicate potential risks for both safety and EV compatibility in your home, and they should not be ignored.

Note: The Electric Vehicle Council strongly recommends that a dedicated circuit be established for your EV. This precautionary measure significantly helps in preventing the overloading of existing circuits in your residence. When setting up a dedicated circuit, it is advisable to opt for a 15amp outlet and charger rather than the standard 10amp circuit, as this adjustment can enhance your charging rate by 50% and reduce your charging time by a third.

Navigating the Essential Steps in the Switchboard Upgrade Process

At Direct Point Electrical, we strive to make the upgrade process as seamless and stress-free as possible:

1. Site Assessment – We conduct a thorough inspection of your existing switchboard, wiring, and main power supply to identify any issues.
2. Load Calculation – We evaluate if your residence can handle the additional load imposed by the EV charger.
3. Upgrade Planning – If an upgrade is necessary, we provide a detailed quote for a new compliant switchboard equipped with RCDs, surge protection, and ample space for the EV charger.
4. Documentation & Compliance – We handle all necessary paperwork with your energy distributor (AusNet or United Energy) and issue a Certificate of Electrical Safety upon successfully completing the upgrade.

Depending on the current condition and configuration of your switchboard, most upgrades can be completed within a single day, allowing you to quickly enjoy the convenience of charging your EV at home.

Ensuring Electrical Compliance for EV Chargers in Victoria

All electrical work performed in Victoria must adhere to the AS/NZS 3000 Wiring Rules, which encompass installations of EV chargers. A licensed electrician is mandated to:

• Implement RCD protection for the circuit to ensure safety
• Ensure that the load from the charger does not exceed the main switch capacity
• Submit necessary forms to your energy distributor to maintain compliance
• Provide a Certificate of Electrical Safety upon completion of the installation

Attempting any DIY or unlicensed installations is not only illegal; it also voids warranties and can result in severe fire hazards or denials of insurance claims.

What Steps Should You Take If You Already Have Solar Panels or Batteries Installed?

This is excellent news! However, it remains crucial to analyze how the EV charger will interact with your existing solar energy system. Balancing the load between solar energy, battery storage, and EV charging requires meticulous planning and consideration.

We will collaborate closely with you to:

• Schedule charging times to maximize the utilization of solar energy
• Ensure that your inverter and battery configuration can accommodate the energy draw from the EV charger
• Recommend suitable charger models that include smart load management features to optimize efficiency

Assessing the Need for a 3-Phase Power Supply for EV Charging

Not necessarily. A 7kW charger operates effectively on single-phase power for most users. However, if:

• You desire faster charging times to minimize downtime
• You own two electric vehicles requiring simultaneous charging
• Or you are running high-load appliances concurrently

… then considering a 3-phase upgrade could be advantageous. We can provide expert guidance on this during your initial inspection to ensure that you make an informed decision.

Key Considerations for Effective and Safe EV Charger Installation

If you are thinking about installing an EV charger at your home, prioritizing your switchboard is absolutely essential. At Direct Point Electrical, we offer free site inspections, transparent pricing, and a streamlined process to ensure safe, efficient, and future-proof EV charging solutions customized for your home.

Whether you reside in Berwick, Narre Warren, or any area in Melbourne’s outer east, we have the perfect EV charging solution designed to meet your specific demands and requirements.
